How to Trigger IDOC immediately when SAP PO is created or updated ?

Trigger IDOC immediately PO is created or updated is a recurrent requirement for business.
This post will explain the main steps to make it happens.

Trigger IDoc for PO Customizing

Please refer to SAP NACE for more information on NACE Transaction and how to configure an output message.

NACE: Maintain Procedures

The NACE transaction is created to maintain Procedures for output.
Go to Nace Transaction and the application EF for Purchase Order. Open Procedures

NACE PO Trigger IDoc 1

Application in SAP NACE

Here the list of Application available in NACE tcodes:

Application  Description
CF Error Control
CV Document Management
E1 Inbound Delivery
EA Purchasing RFQ
EF Purchase Order
EL Purch. SchAgrRelease
ES Entry Sheet
EV Purch.Outline Agr.
K1 Sales activities
M1 Rough Goods Receipt
MD Direct Procurement
ME Inventory Management
MR Invoice Verification
NF Nota fiscal
P1 Direct Production
PA JIT Call
RD DBM Automotive
RE DBM Putaway Manager
RS Automotive
RW DI – Warranty
V1 Sales
V2 Shipping
V3 Billing
V5 Groups
V6 Handling Units
V7 Transport
VL Visit List
WA Allocation Table
WB Retail Promotion
WE Labeling
WN Free Sett. Rel. Del.
WR Agency Business
WS Free Sett. Agreem.
WT Trading Contract

Maintain SAP Message Schemas (SPRO)

Go to transaction SPRO and Message Schema for Purchase Order.
In this, navigate as following:
Materials management > Purchasing > Messages > Output control > Message Determination Schemas > Define Message Schema for Purchase Order

NACE PO Trigger IDoc Define

Select Assign Schema to Purchase Order and make sure the Procedure RMBEF1 ( or the custom Procedure maintained ) is active

NACE PO Trigger IDoc Assign Msg Determination

Maintain Output types (NACE)

Here the step by step to follow to create / configure an Output Types :

  • Go back to transaction NACE.
  • Select ‘EF’ and click on “Output types”. Go to NEU
    • PS: use NEU Output Type or a copy of NEU .
  • Add a new entry in Processing Routines with Transmission Medium EDI
    • We can use the standard program RSNASTED with the form EDI_PROCESSING

NACE PO Trigger IDoc NEU

Maintain Conditions Records for NEU (NACE)

Make sure the partner function is set to LS Logical System and the partner is the Logical System receiver of the Idoc.

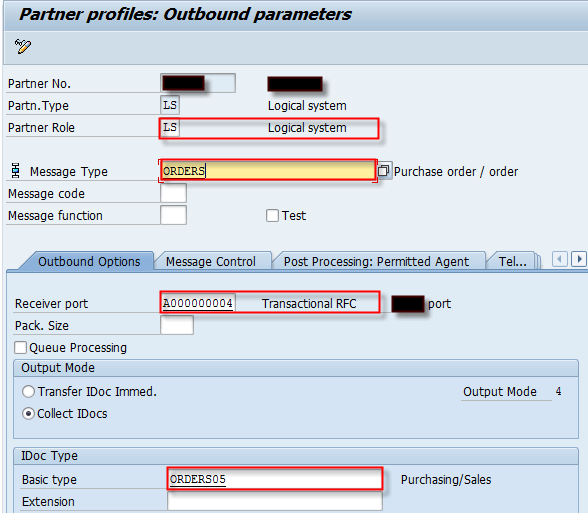

Maintain ALE configuration (WE20)

For Purchase Order, the message type is ORDERS and the IDOC Type ORDERS05

NACE PO Trigger IDoc WE20

Set Process Code (WE20)

Within the control tab, maintain the process code ME10 with Message Type NEU and application EF

NACE PO Trigger IDoc WE20 Process Code

List of SAP Process Code

Here the list of possible value for Process Code in SAP. ( Note that you can create your own Process Code ).

/ISDFPS/ Process Code

Process Code Description
/ISDFPS/AD Company Addresses Infotype 1952
/ISDFPS/BOMEQU Equipment BOM
/ISDFPS/BOMSTD Standard BOM
/ISDFPS/BOMTPL Functional Location BOM
/ISDFPS/CP01 Change Authorization
/ISDFPS/CRE1 CREMAS Venddor Master Data ISDFPS with UPS
/ISDFPS/DEBM DEBMAS Customer Master Data ISDFPS with UPS
/ISDFPS/EL01 Additional Objects EXPO_LIS
/ISDFPS/EP01 Equipment Package
/ISDFPS/ET01 Equipment
/ISDFPS/FC01 Funds Center
/ISDFPS/FL01 Functional Locations
/ISDFPS/FO01 Structure Element
/ISDFPS/KS01 Cost Center
/ISDFPS/MC01 Material Container
/ISDFPS/MCMCR1 MC -> MPO Relationships
/ISDFPS/MD01 Measurement Documents
/ISDFPS/MDMA /ISDFPS/MAT_DISPO Material MRP Area Data
/ISDFPS/MO01 Material Planning Object
/ISDFPS/MOMOD MPO Models
/ISDFPS/MOMOR1 MPO Relationships (Plants Sections)
/ISDFPS/MP01 PM – Maintenance Plans
/ISDFPS/MPL01 Master Part List
/ISDFPS/MR01 Measuring Points
/ISDFPS/MS01 Maintenance Strategy
/ISDFPS/NO01 Messages
/ISDFPS/OREL01 External Dependency
/ISDFPS/PACK /ISDFPS/PACKVOR Packing Instructions
/ISDFPS/PC01 Profit Center
/ISDFPS/PR01 Production Resources and Tools
/ISDFPS/PS01 WBS Element
/ISDFPS/RL01 Reference Locations
/ISDFPS/RV01 Revisions
/ISDFPS/SG01 Structure Gap
/ISDFPS/TC01 Return Messages
/ISDFPS/TL01 PM Task Lists
/ISDFPS/VP01 Material Package
/ISDFPS/V_SE_EP01 Logistics Requirement (Equipment Package)
/ISDFPS/V_SE_MC01 Authorized Materials (Material Container)
/ISDFPS/V_SE_MP01 Authorized Materials (Material Planning Object)
/ISDFPS/V_SE_VP01 Logistics Requirement (Material Package)
/ISDFPS/WC01 Work Centers
/ISDFPS/WO01 Maintenance Order

SAP A* and B* Process Codes

Process Code Description
ABI_AIDN_IN
AFSA AFS inbound article
ALC2 Synchron. of cust. data between systems (CONDA2)
ALEC Control data adjustment between systems
ALFW Forward IDOCs to another system
APLI Inbound IDoc: Individual Processing
APLM Inbound IDoc: Mass Processing
ASMO ASSMOD Assortment module
AUD1 ALEAUD processing information for IDocs
AUD2 ALEAUD Processing Info Data Replication
AUDIT_STAT ALEAUD IDoc Status Without Statistics
BAPI Inbound BAPI IDoc: Individual processing
BAPI_MDM Inbound BAPI IDoc: Individual processing MDM Vers.
BAPI_MDM_MATERIAL_RT
BAPI_MDM_TA Inbound BAPI IDoc: Individual processing MDM Vers.
BAPP Inbound BAPI IDoc: Packet processing
BLAC BLAOCH Purchasing contract change
BLAO BLAORD Purchasing contracts
BLAR BLAREL Release order doc. for purchasing contr.
BNRT Benefits pension schemes
BOM2 MDM: Eingang Materialstückliste
BOMD BOMDOC Document structure
BOMM BOMMAT Material BOM
BOMO BOMORD sales order BOM

SAP C*, D* and E*  Process Coes

Process Code Description
CATT Application for Automatic Tests
CHRM CHRMAS Characteristics
CLFM CLFMAS Classification
CLSM CLSMAS Classes
CMRE Invitation to send TR-CM data
CMSE Processing of sent TR-CM data
CNPM CNPMAS Configuration profile
CO01 BBPCO Incoming Invoice
COA1 COACTV Cost center/activity type master data
COAF COAFET Request activity type
COAM COAMAS Activity type master data
COCO COCOKA CO object/cost element master data
CODC CODCMT CO document
COEL COELEM Cost elements master data
COG1 COGRP1 Cost center groups
COG2 COGRP2 Cost element groups
COG3 COGRP3 Order Groups
COG5 COGRP5 Activity type groups
COG6 COGRP6 Profit center groups
COG7 COGRP7 Business process groups
COG9 COGRP9 Account groups (profit center)
COMM_ITEM Commitment Item
CON1 CONF11 Confirmations in CC1
CON2 CONF21 Confirmations in CC2 time events
CON4 CONF31 Confirmations in CC3 time events
CON5 CONF32 Confirmations in CC3 wage slips
CON6 CONF41 Confirmations in CC4 time events
CON7 CONF42 Confirmations in CC4 wage slips
CON8 CONF51 confirmations in CC5 kanban
COND Conditions: Master data for price determination
CONF Confirmation of IDoc processing from application
COPC COPCPA Costing data CO-PC -> CO-PA
COSF COSFET Request cost center
COSM COSMAS Cost center master data
COTO COTOTL CO totals records
CP00 CP…. Profitability Accounting (COPAGN)
CRE1 CREMAS Vendor master data
CRE2 MDM: Input Vendor from CRM via IS
CREA REMADV Credit Advice
CREC CREADV Credit memo display with clearing FI
CREF CREFET Get vendor data
DEB2 MDM: Input Debitor from CRM via IS
DEBA REMADV Debit Advice
DEBC DEBADV Debit display with clearing FI
DEBF DEBFET Request customer master
DEBM DEBMAS Customer master data
DELI DELINS Delivery schedule/JIT delivery schedule
DELO Delivery order (MAIS Pick-up Sheet)
DELS Delivery advice (DESADV with DELVRY01)
DELV Delivery (SHPCON + WHSCON with DELVRY01)
DEPN DEPNET – Dependency nets
DESA Delivery advice (DESADV with DESADV01)
DOC2 DOCMAS Documents for MDM
DOCM DOCMAS Documents
DOLMAS DOLMAS Object Linking
DPOD Acknowledgement of Receipt (POD)
ECM2 Change Management: MDM Plug-In Version
ECMM Change number
ECMR ECMREV : Revision level
ECM_UPS Change Management with UPS
ED00 Display IDoc using work item
ED00_XML Display IDoc using work item (XML)
ED01 Process incoming inquiry converted 21
ED02 Process incoming order converted 21
ED03 Process order confirmation converted 2.1
ED04 Process purch.ord.chng. converted 2.1
ED05 Process shipping notification converted 21
ED06 Process invoice receipt MM converted 21
ED07 Process invoice receipt FI converted 21
ED08 Forward IDoc
EDI1 EDI_INPMAN
EDLN EDLNOT EDL delivery notes
EDX_DELS Delivery advice (DESADV with DELVRY01)
EDX_INVF INVOIC FI Invoice receipt (Financial Accounting)
EDX_INVL INVOIC MM Logistics invoice verification (MM)
EDX_ORDC ORDCHG Change sales order
EDX_ORDE ORDERS Create sales order
EDX_ORDR ORDRSP Purchase order confirmation
EKSE EKSEKS Purchasing doc. for Purchasing Info System

SAP F*->Q*  Process Coes

Process Code Description
FI01 EDI FI: Incoming invoice (<= Rel. 2.2)
FI04 Process reference IDoc for payment
FICH FIDCCH Change to an FI document
FID1 FIDCC1: FI entire documents (Exit 003/004)
FID2 FIDCC2: FI entire documents (Exit 005/006)
FIDC FIDCMT FI single items
FINS FINSTA Account statement
FIRO FIROLL G/L rollup
FMALE_FI Funds Management: Actual IDocs
FMALE_OI Funds Management: Commitment IDocs
FMEDIOC BCS Documents
FTBA FTDABA: Foreign trade basic data
FTCO FTDACO: Customs conditions
FTCU FTDACU: Foreign trade customs data
FTRC FTRCON Receipt Confirmation for Financial Trans.
FUNDSCENTER Funds Center
GLCO GLCORE G/L core master data
GLFE GLFETC Request G/L accounts
GLMA GLMAST G/L account master data
GLRO GLROLL FI-SL rollup
GSVE GSVERF Credit memo procedure
HRMD HR: HR master data organizational data
HRPA HRPAY: Transfer FI/CO
HRSM External personnel action
HRSM_D External personnel action
HRTR HRTRVL: Transfer FI/CO
IMAT IMATIS Unplanned material issues
IMEA IMEASR Measurement readings
INFR INFREC Purchase info records
INTU INTUPD Notification (or Task) status update
INVB BBPIV BBP Invoice Verification
INVC INVCON Inventory controlling
INVF INVOIC FI Invoice receipt (Financial Accounting)
INVL INVOIC MM Logistics invoice verification (MM)
INVM INVOIC MM Invoice Verification (Mat. Management)
IOAU IOAUPD Order assignment update
IORU IORUPD Order (or Operation) status update
IV01 BBPIV Incoming Invoice
KANB KANBAN call
KNOM KNOMAS Global object dependencies
LCRO LCROLL Legal consolidation
LIKO LIKOND Listing conditions
LIP0 LIP… Distributed IS planning
LIS0 LIS… MMX_EXTERNAL_DATA_GLOBAL_ENTRY
LOBX LOCKBX Lockbox
LPAY ACLPAY Accounting invoice receipt
LREC ACLREC Accounting invoice
LSTD Current requirements/stock list
MAT2 MDM: Input Material from CRM via IS
MATF MATFET Request material
MATM MATMAS Material master data
MDMREQ MDM Request
ME01 Order Confirmation with ORD_ID01 (ME_ORDRSP)
ME04 ME_DESADV
MR01 MM_INVOIC
ORDC ORDCHG Change sales order
ORDE ORDERS Create sales order
ORDE_BY_WORKFLOW ORDERS sales order with texts in Workflow
ORDM ORDCHG VMI PO creation confirmation (customer)
ORDR ORDRSP Purchase order confirmation
ORDR_SUS ORDRSP
ORDS ORDRSP SMI Generate/Confirm Purchase Order
ORDV ORDRSP VMI generate/confirm purchase order
PALM PALMAT Plant assignment for material BOM
PCRO PCROLL Profit Center Rollup
PEXC PI Incoming Payment Processing Clearing (ERP1.0)
PEXC_PI PI Incoming Payment Processing Clearing (ERP 1.0)
PEXN IHC Zahlungseingangsverarbeitung (ERP1.0)
PEXR Incoming payment processing
PINW HRINW Time tickets from Logistics
PJMM ACPJMM Accounting goods movement
PPRS HRPRS Attendances from Logistics
PRAC PROACT Customer stock data and sales data
PRCF PRCFET Fetch profit center master record
PRCM PRCMAS Profit center master record
PRDC PRDCAT basic and structure data product catalog
PRDP PRDPOS position data product catalog
PRICAT Pricing catalog
QCERT_IN Inbound processing for Qality01

SAP R*->W*  Process Coes

Process Code Description
RCLR RCLROL CO rollup reconcil. ledger
RCY0 RCYFET Get recovery objects
RCY1 RCYRSP Acknowledge recovery objects
RCY2 RCYLST Confirm recovery objects
REMA REMADV Payment advice
REMC REMADV Payment advice with clearing in FI
REQO REQOTE Create customer inquiry
RSIN BW: Info IDoc (Status) from Source System
RSRQ RSAP_IDOC_DISPATCHER
SBAP SD credit memo procedure w. autom. posting (SBWAP)
SBII Credit memo procedure with invoice creation
SD01 SD_ORDERS
SD02 SD_REQOTE
SD03 SD_ORDCHG
SD04 SD_EDLNOT
SD05 SD_DELINS
SDPA SDPACK Shipping unit data confirmation
SDPI SDPICK Picking data confirmation
SERD SERDAT Control message serialized distribution
SHIP SHIPPL External transport planning
SHPC Inbound freight planning of carrier
SHPM Inbound transport
SHPT Shipment tendering
SISC SISCSO Sales info: Customer order
SISD SISDEL Sales info: Deliver
SISI SISINV Sales info: Billing document
SRCL SRCLST Source list
SRVM SRVMAS : Service master (master data)
STA1 Status record from IDoc
STA2 Status Record from IDoc; with Function Module
STTM STTMAT material variants
TXT1 Text message from IDoc as RAW message
UPSM ALE distribution unit (MASTER)
UPSR ALE distribution unit (RECEIPT)
VFNM VFNMAS inbound variant function
VTAM VTAMAS Structures from variant tables
VTMM VTMMAS Contents of variant tables
WALR WALREQ Allocation: Requested quant. confirmation
WFMHCM
WMBB WMBBIN Lock storage bins
WMCA WMCATO Reversal/Reversal request transfer order
WMI1 WMINVE Inventory count input
WMIN WMINFO Information
WMMB WMMBXY IDOC Report goods movements in IM
WMPH WMPIHU Assign and Create Pick-HU
WMSU WMSUMO Move storage unit
WMT1 WMTORD Transfer request
WMTO WMTOCO Confirm transfer request
WMTR WMTREQ Create/Cancel transfer request
WPUB WPUBON Upload sales documents (uncompressed)
WPUE WPUERR Messages FWWS/POS/SCS
WPUF WPUFIB Upload accounting documents
WPUK WPUKSR Upload cashier data
WPUP WPUPAE Price changes
WPUT WPUTAB Day-end closing POS
WPUU WPUUMS Sales data (compressed)
WPUW WPUWBW Goods movements
WP_E WP_EAN EAN assignments
WP_P WP_PLU Product master
WTYIC Warranty: Incoming Applications (IC)
WTYIV Warranty: Incoming Applications (IV)
WVFB ORDERS >= 3.0 or GOODS_REQUIREMENT
WVIN WVINVE Upload actual inventory count dates

Sab125

Hi. I have been working as SAP Technical and functional for a decade. Through this blog, I am trying to share with you my experience. Hopefull, it makes your ways easier path ... Sab
